OB02025

MATRIX WOOD INSERT

Fuel type : Dry cordwood
Maximum log length : 51 cm
Size : 918 mm W X 586 mm D X 638 mm H
CO at 13% O2 : 0,0902 %
* Sales price including all tax. The displayed price do not include freight and installation charges.

  • Description
  • Options and Accessories
  • Specs / Manual
  • Support and parts

Description

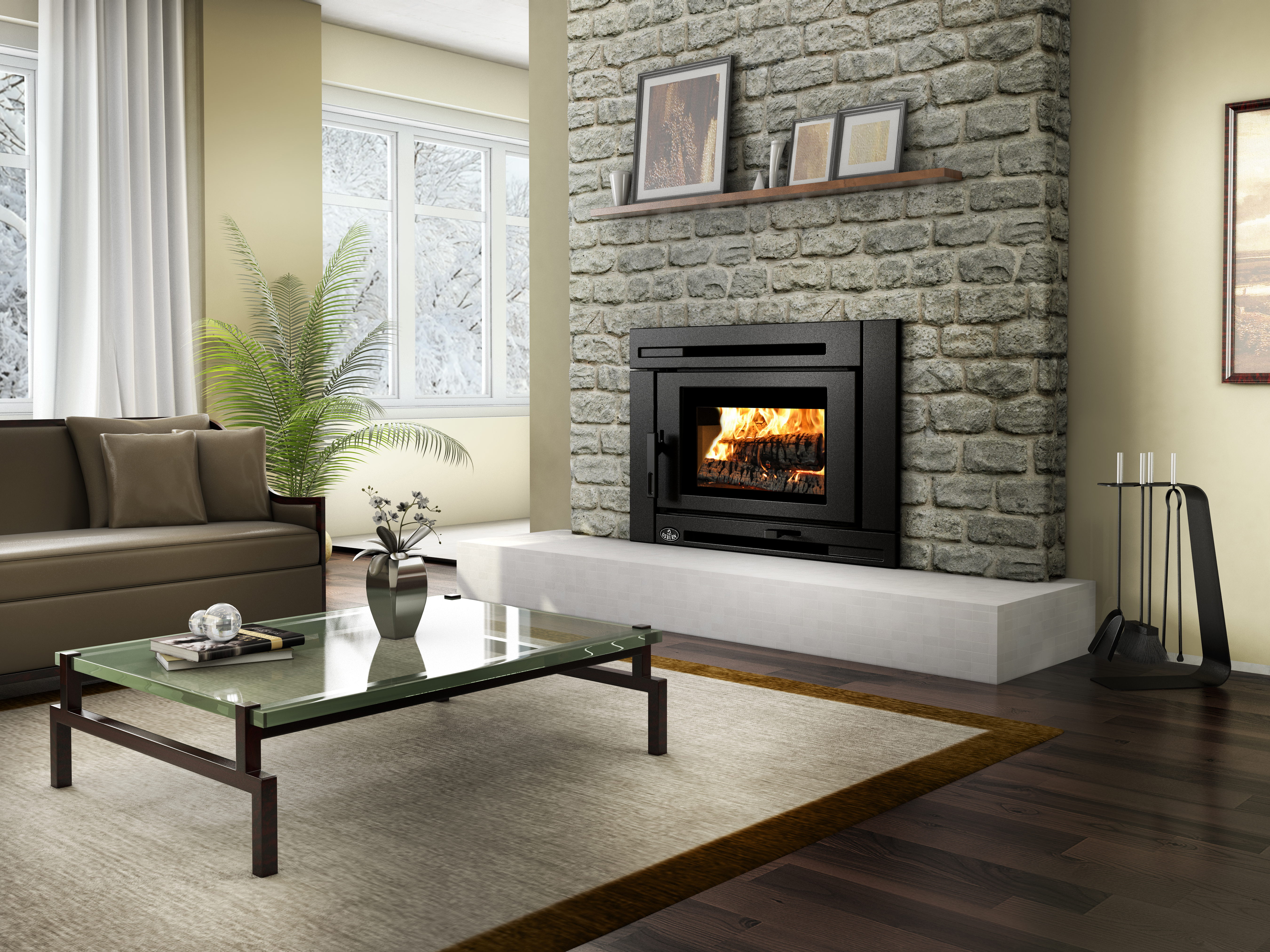

The Matrix wood insert defines the new standards for contemporary look and performance. This appliance looks like a fireplace, but has all the advantages of an insert. It's faceplate and blower assembly were developed to allow a flush finish with the masonry fireplace. The blower assembly is equipped with a heat sensor and a switch that can be set to automatic, manual or OFF position. Cast iron was selected as the material of choice for this clean and modern unit.

Installation into larger openings is facilitated by the use of an optional sheet metal backing plate. This wonderful insert will surely become the focal point of the room.

High resolution images

Options and Accessories

Options

Part number and description
Price
Shipping time

FACEPLATE BACKING PLATE KIT

AC01322

From €102.00 TTC
In stock

PROJECTION KIT FOR INSERT 2" OR 4"

AC01323

From €114.00 TTC
In stock

Accessories

Adhesives, gaskets and insulation

Part number and description
Price
Shipping time

SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT

AC06500

From €12.00 TTC
In stock

Paint

Part number and description
Price
Shipping time

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

From €15.00 TTC
In stock

Specs / Manual

Appliance performance (1)

Fuel type : Dry cordwood
Heated volume (m³) : 115 - 475
Firebox volume (m³) : 0.068
Burn time (hours) : 6 - 8
Eciency : 77,98 %
CO at 13% O2 : 0,0902 %
Nominal heat output : 10 kW

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

General features

Clearance – combustible top mantle to unit 508 mm
Clearance – top shelf to unit 559 mm
Maximum log length 51 cm
Diameter of smoke pipe outlet 150 mm
Baffle type C-Cast
Shipping Weight 220 kg
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 499 mm x 302 mm
Overall dimension (Height) 638 mm
Overall dimension (Width) 918 mm
Overall dimension (Depth) 586 mm
Door opening – dimension (Height) 224 mm
Door opening - dimension (Width) 444 mm
Firebox – dimension (Height) 303 mm
Firebox – dimension (Width) 533 mm
Firebox – dimension (Depth) 339 mm
Firebox thickness – Outline 5 mm
Thickness – Top 8 mm
Centre line of flue outlet to the side 342 mm
Centre line of flue outlet to the back 262 mm
Minimum fireplace opening (height) 604 mm
Minimum fireplace opening (Width) 734 mm
Minimum fireplace opening (depth) 500 mm
Minimum clearances to combustibles*
Clearance – top (measured from the platform on which the appliance is installed)** 213 cm
Clearance – minimum floor protection in front of the appliance 457 mm

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
