Alternate Text

Customize your product

Louver or triver
BLACK VENTILATION GRILLES AND DECORATIVE TRIVET OA10100
Door overlay
BLACK DOOR OVERLAY OA10140
BRUSHED NICKEL DOOR OVERLAY OA10150
+ €150.00
Total €2,196.00 *

Print

OB02213

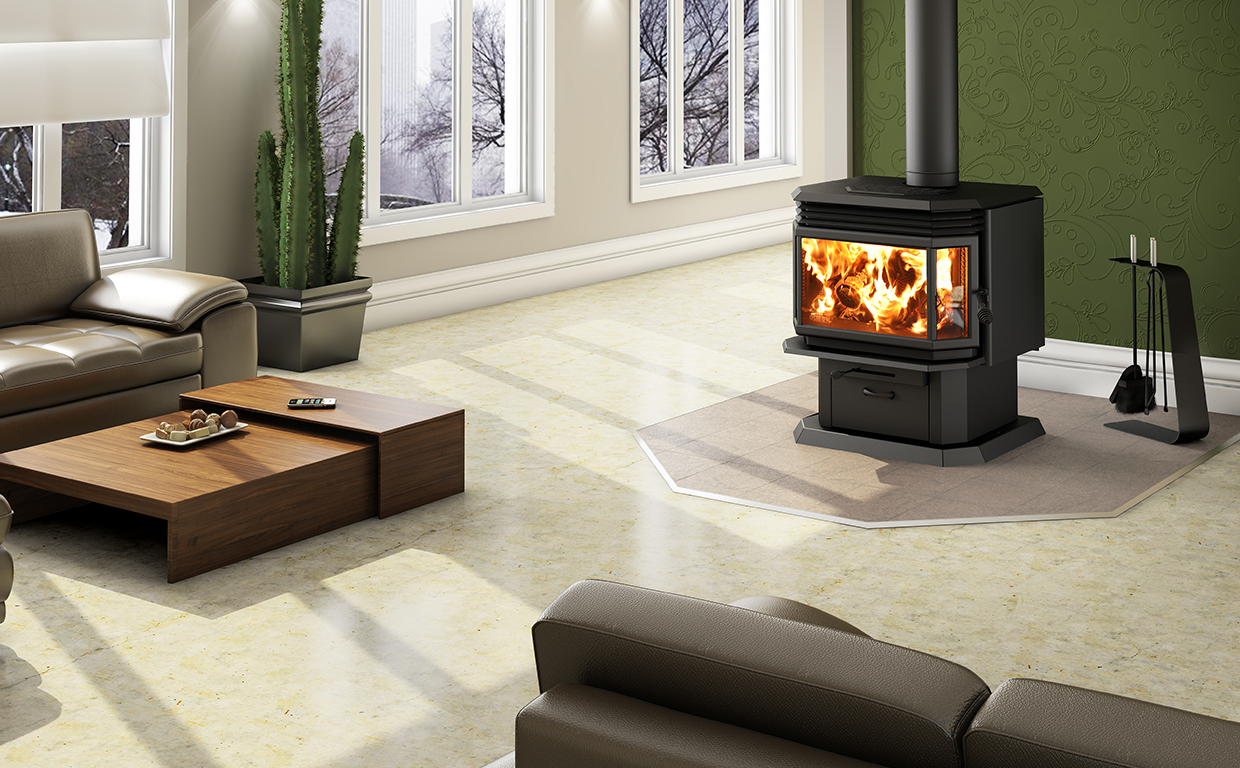

OSBURN 2200 WOOD STOVE

Fuel type : Dry cordwood
Maximum log length : 41 cm
Size : 660 mm W X 666 mm D X 815 mm H
CO at 13% O2 : 0,10 %
* Sales price including all tax. The displayed price do not include freight and installation charges.

  • Description
  • Options and Accessories
  • Specs / Manual
  • Support and parts

Description

Although similar in many respects to the older 1800 model, the 2200 stove is more suited to more intensive, continuous use. Its 20% larger firebox is designed to maintain steady heat over a longer period. A powerful, ultra-silent 220 m3/hr variable speed blower is available as an option.

The glass surface of the bay window is also 20% larger than that of the 1800 model, providing a wonderful view of the fire from every angle. In short, the Osburn 2200 offers a perfect combination of utility and enjoyment!

High resolution images

Options and Accessories

Options

Part number and description
Price
Shipping time

220 m³/hr VARIABLE SPEED BLOWER

OA11367

From €234.00 TTC
In stock

5"Ø X 4' INSULATED FLEX PIPE FOR FRESH AIR INTAKE KIT

AC02090

From €30.00 TTC
In stock

Accessories

Adhesives, gaskets and insulation

Part number and description
Price
Shipping time

SILICONE AND 7/8" X 8' BLACK DOOR GASKET KIT

OA11390

From €34.00 TTC
In stock

Paint

Part number and description
Price
Shipping time

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

From €15.00 TTC
In stock

Specs / Manual

Appliance performance (1)

Fuel type : Dry cordwood
Heated volume (m³) : 150 - 465
Firebox volume (m³) : 0.066
Burn time (hours) : 6 - 8
Nominal heat output : 10 kW
Eciency : (2) (3) 71.1 %
CO at 13% O2 : 0,10 %

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

(2) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

(3) Optimum overall efficiency at a specific burn rate (LHV).

General features

Maximum log length 41 cm
Diameter of smoke pipe outlet 150 mm
Baffle type C-Cast
Shipping Weight 180 kg
Door type Single, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 425 mm x 265 mm
Overall dimension (Height) 815 mm
Overall dimension (Width) 660 mm
Overall dimension (Depth) 666 mm
Door opening – dimension (Height) 227 mm
Door opening - dimension (Width) 487 mm
Firebox – dimension (Height) 310 mm
Firebox – dimension (Width) 484 mm
Firebox – dimension (Depth) 437 mm
Model Pedestal
Firebox thickness – Outline 5 mm
Thickness – Top 8 mm
Centre line of flue outlet to the side 330 mm
Centre line of flue outlet to the back 141 mm
Minimum clearances to combustibles*
Single wall pipe Double wall pipe
Clearance – back wall 410 mm 410 mm
Clearance – side wall 435 mm 435 mm
Clearance – placed in a corner 255 mm 255 mm
Clearance – top (measured from the platform on which the appliance is installed)** 1220 mm 1220 mm

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Support and parts

Need a replacement part for your appliance?

We have everything you need! Buy it online or from your local dealer.

Find a replacement part for this product
