Technical Specifications

Print

OB01521

SOHO WOOD STOVE

Fuel type : Dry cordwood
Maximum log length : 43 cm
Size : 723 mm W X 538 mm D X 836 mm H
CO at 13% O2 : 0.0445 %
* Sales price including all tax. The displayed price do not include freight and installation charges.

  • Description
  • Options and Accessories
  • Specs / Manual
  • Support and parts

Description

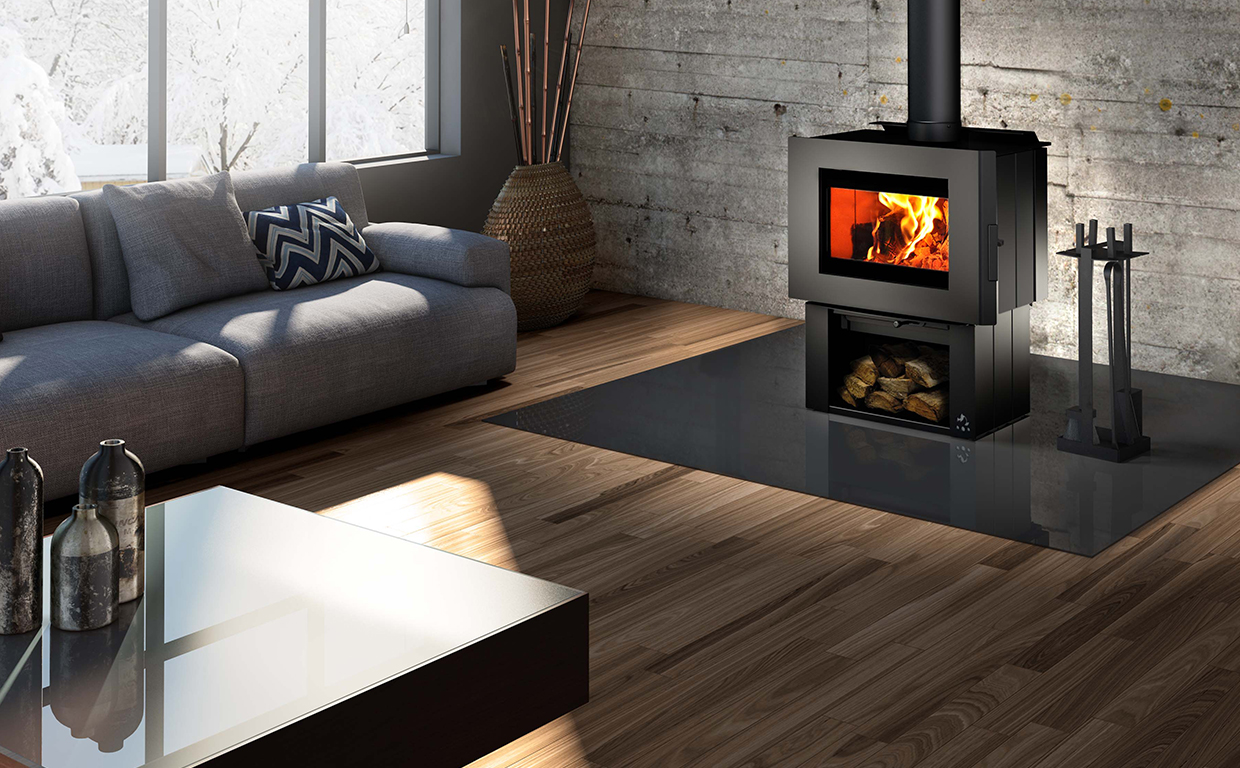

Once again, Osburn innovates to offer you the Soho, a small wood stove with an ultra modern design. This stove, which features an exceptional view of the fire, comes with an easy-to-operate door latch system that compliments the clean lines of the appliance. The Soho can be personalized according to your tastes and decor, thanks to its modular side panels available in different finishes and it offers two convenient and safe pedestal choices to store your logs.

This stove can be equipped with an optional blower, in addition to being ready for a fresh air connection kit without the need for any special adaptor. The Soho is an ecological heating appliance that will please those seeking efficiency and contemporary design!

High resolution images

Options and Accessories

Options

Part number and description
Price
Shipping time

220 m³/hr VARIABLE SPEED BLOWER

AC01010

From €234.00 TTC
In stock

5"Ø X 4' INSULATED FLEX PIPE FOR FRESH AIR INTAKE KIT

AC02090

From €30.00 TTC
In stock

Accessories

Adhesives, gaskets and insulation

Part number and description
Price
Shipping time

SILICONE AND 7/8" X 8' BLACK DOOR GASKET KIT

OA11390

From €34.00 TTC
In stock

Paint

Part number and description
Price
Shipping time

METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL

AC05959

From €15.00 TTC
In stock

Specs / Manual

Appliance performance (1)

Fuel type : Dry cordwood
Heated volume (m³) : 115 - 340
Firebox nominal volume (m³) : 0.049
Burn time (hours) : 5 - 6
Nominal heat output : 7 kW
Eciency : 77,20 %
CO at 13% O2 : 0.0445 %

(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

General features

Maximum log length 43 cm
Diameter of smoke pipe outlet 150 mm
Baffle type C-Cast
Shipping Weight 148 kg
Door type Single, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 413 mm x 208 mm
Overall dimension (Height) 836 mm
Overall dimension (Width) 723 mm
Overall dimension (Depth) 538 mm
Door opening – dimension (Height) 186 mm
Door opening - dimension (Width) 400 mm
Firebox – dimension (Height) 310 mm
Firebox – dimension (Width) 460 mm
Firebox – dimension (Depth) 260 mm
Model Pedestal
Firebox thickness – Outline 5 mm
Thickness – Top 8 mm
Minimum clearances to combustibles*
Clearance – back wall 381 mm
Clearance – placed in a corner 203 mm
Clearance – side wall 406 mm
Clearance – top (measured from the platform on which the appliance is installed)** 213 cm

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
